1955-1959 Chevy Truck Billet Aluminum Gauge Panel w/ Auto Meter Street Rod series gauges
13003_collage

1955-59 Chevy Truck Boese Engineering aluminum gauge panels w/ AutoMeter Street Rod series gauges

1955-1959 Chevy Truck Billet Aluminum Gauge Panel w/ Auto Meter Street Rod series gauges - Image 2
13003_AWE

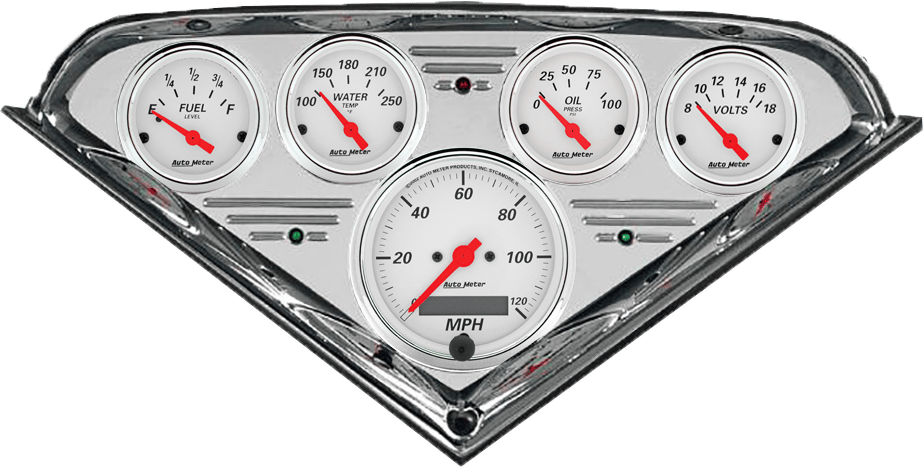

13003-AWE (1955-59 Chevy Truck w/ Arctic White Gauges)

1955-1959 Chevy Truck Billet Aluminum Gauge Panel w/ Auto Meter Street Rod series gauges - Image 3
13003_OBE

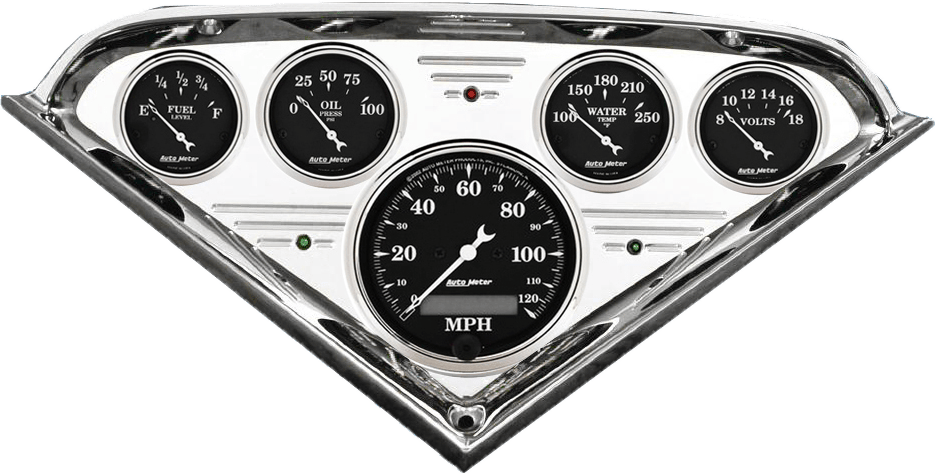

13003-OBE 1955-59 Chevy Truck Aluminum Gauge Panel w/ AutoMeter Old Tyme Black Gauges

1955-1959 Chevy Truck Billet Aluminum Gauge Panel w/ Auto Meter Street Rod series gauges - Image 4
13003_OWE

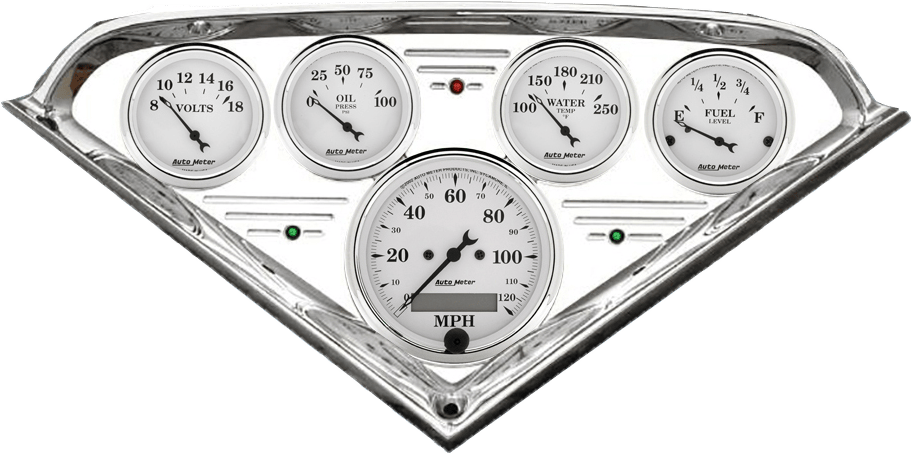

13003-OWE 1955-59 Chevy Truck Aluminum Gauge Panel w/ AutoMeter Old Tyme White Gauges

1955-1959 Chevy Truck Billet Aluminum Gauge Panel w/ Auto Meter Street Rod series gauges - Image 5
13003_DBE

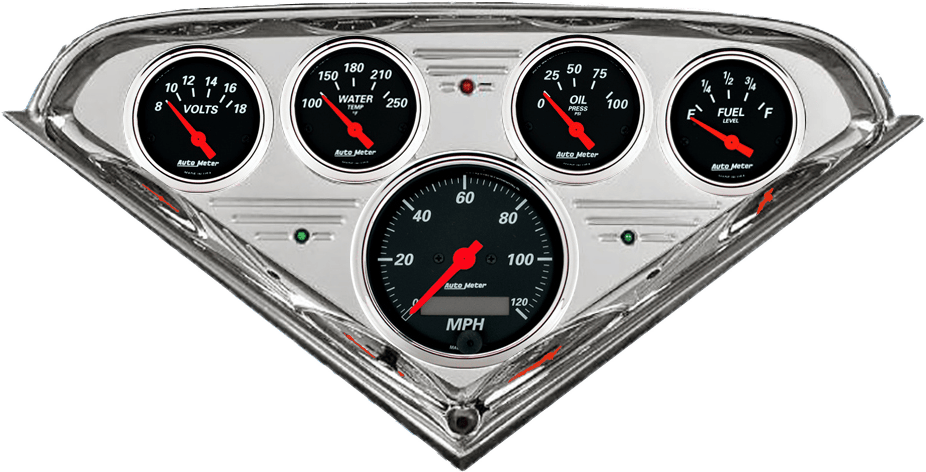

13003-DBE 1955-59 Chevy Truck Aluminum Gauge Panel w/ AutoMeter Designer Black Gauges

1955-1959 Chevy Truck Billet Aluminum Gauge Panel w/ Auto Meter Street Rod series gauges - Image 6
13003_ABE

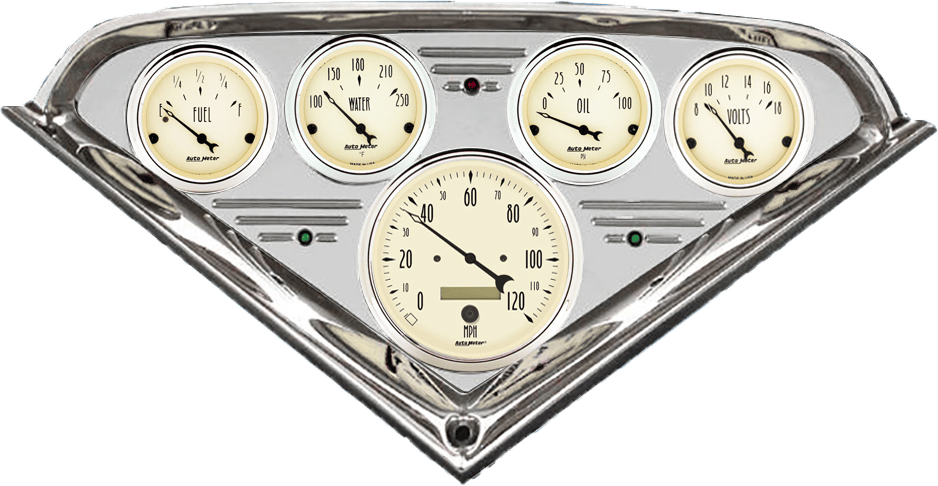

13003-ABE 1955-59 Chevy Truck Aluminum Gauge Panel w/ AutoMeter Antique Beige Gauges

1955-1959 Chevy Truck Billet Aluminum Gauge Panel w/ Auto Meter Street Rod series gauges

Price range: $538.95 through $599.50

Includes aluminum dash insert, Auto Street Rod series gauges & turn signal/high beam indicators.

Gauge series choices:

  • Old Tyme Black
  • Old Tyme White
  • Antique Beige
  • Designer Black
  • Arctic White

Gauges include:

  • 3 1/8″ speedometer (choice of mechanical, electric, or metric)
  • 2 1/16″ 100 PSI electric oil pressure
  • 2 1/16” 100-250 F electric water temperature
  • 2 1/16” 8-18 VDC voltmeter
  • 2 1/16” fuel level (choose ohm range from drop down list)
  • Sending units are included for the oil pressure & water temperature

Outside chrome bezel sold separately.

California Residents: Prop 65 WARNING Birth Defects and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.

SKU: 13003-SR Category: Tags: , , , , ,

Description

Feature Points

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Package includes oil pressure sender, water temperature sender, bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.

Ships With

  • Oil Sender 2242 – Water Sender 2258
  • 3/8″ NPT and 1/2″ NPT adapter fittings
  • Brackets Included

Additional information

Weight 5 lbs
Dimensions 15.5 × 9.5 × 6 in
Gauge Panel Finish

Brushed Finish, Polished Finish
Speedometer Options

120 MPH Mechanical, 120 MPH Electronic, 190 KPH Electronic
Gauge Series

Designer Black, Old Tyme White, Old Tyme Black, Arctic White, Antique Beige
Fuel Gauge ohm range

0-30 ohms (works w/ stock sender), 0-90 ohms (late model GM), 73-10 ohms (Pre-89 Ford), 240-33 ohms (works w/ ATM3262)
