1967-1972 Chevy Truck Aluminum Adapter Kit w/ Auto Meter Ultra-Lite Gauges
16000_UL_GPS

16000-UL-GPS (1967-72 Chevy Truck w/ Auto Meter Ultra-Lite Gauges)

1967-1972 Chevy Truck Aluminum Adapter Kit w/ Auto Meter Ultra-Lite Gauges - Image 2
16000_2022_UL_KPH_GPS

16000-UL-KPH (1967-72 Chevy Truck w/ Auto Meter Ultra-LIte Gauges)

1967-1972 Chevy Truck Aluminum Adapter Kit w/ Auto Meter Ultra-Lite Gauges - Image 3
16000_ULE

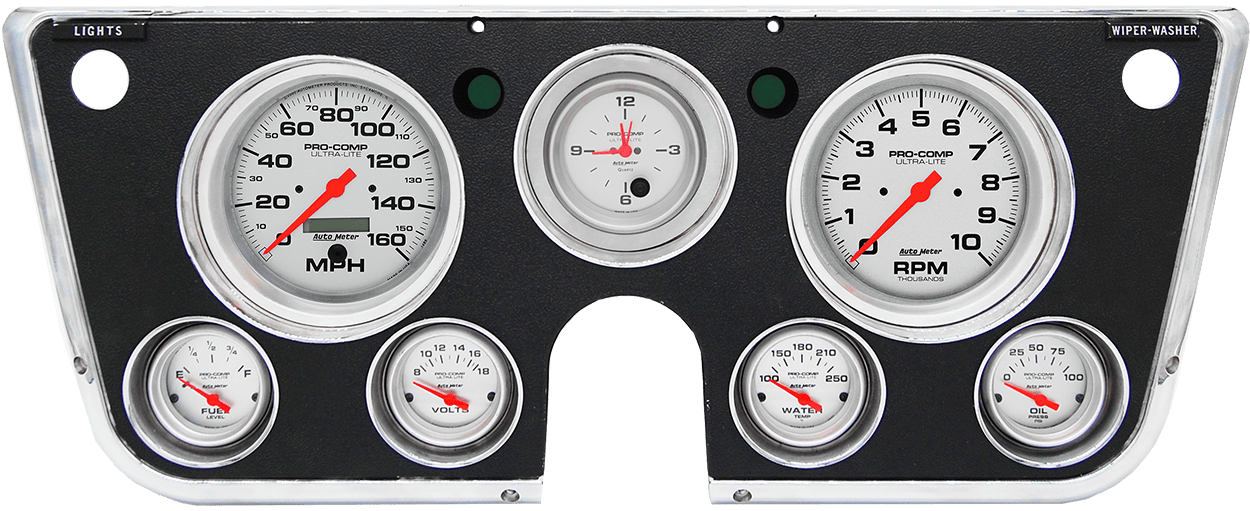

16000-ULE (1967-72 Chevy Truck w/ Auto Meter Ultra-LIte Gauges)

1967-1972 Chevy Truck Aluminum Adapter Kit w/ Auto Meter Ultra-Lite Gauges - Image 4
16000_ULE_KPH

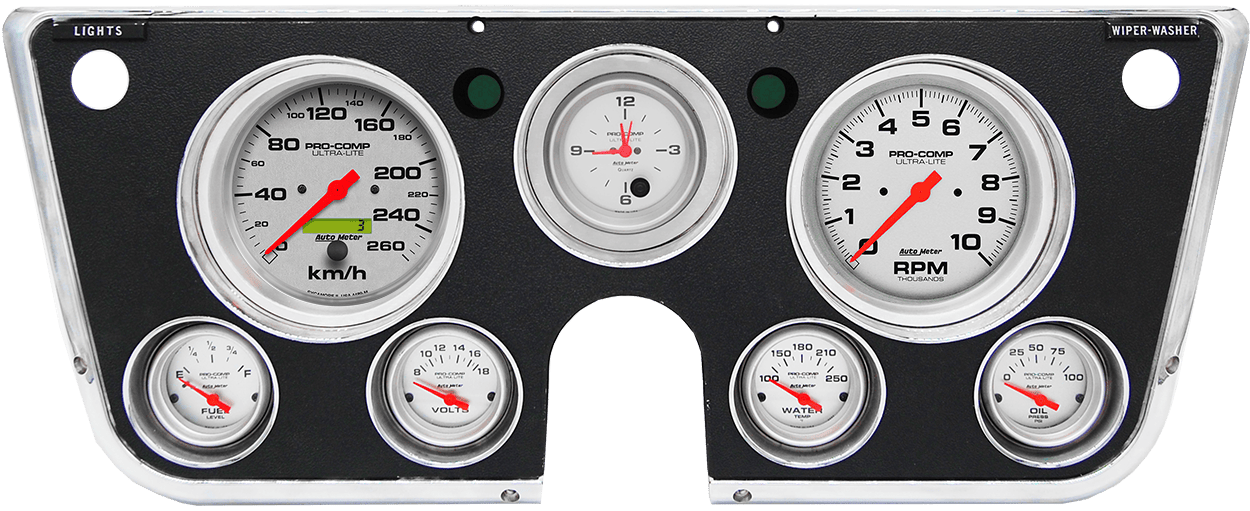

16000-ULE-KPH (1967-72 Chevy Truck w/ Auto Meter Ultra-LIte Gauges)

1967-1972 Chevy Truck Aluminum Adapter Kit w/ Auto Meter Ultra-Lite Gauges - Image 5
16000_UL

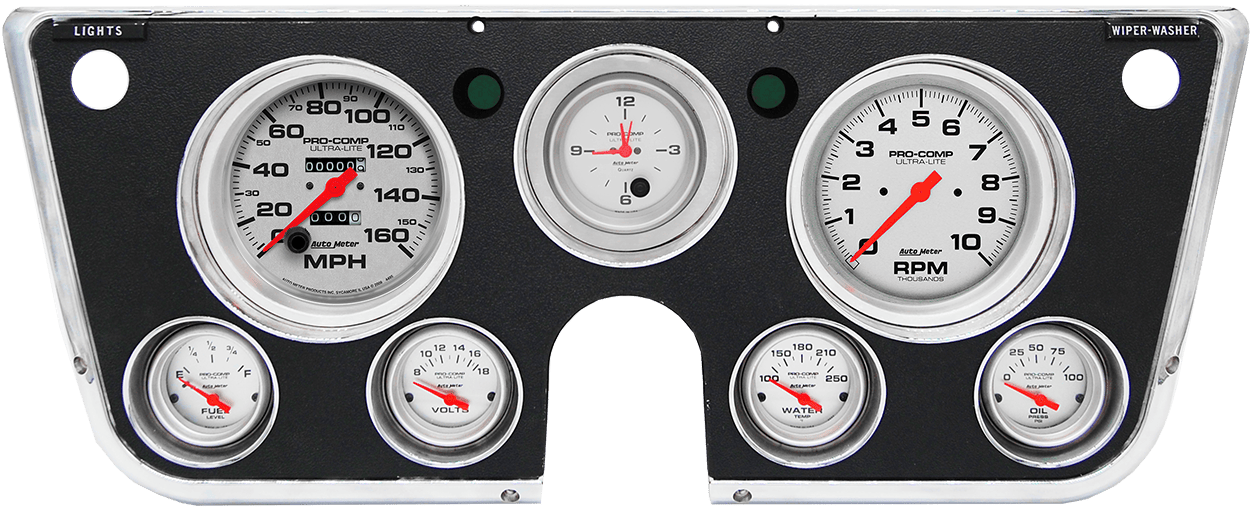

16000-UL (1967-72 Chevy Truck w/ Auto Meter Ultra-LIte Gauges)

1967-1972 Chevy Truck Aluminum Adapter Kit w/ Auto Meter Ultra-Lite Gauges - Image 6
16000_Rear

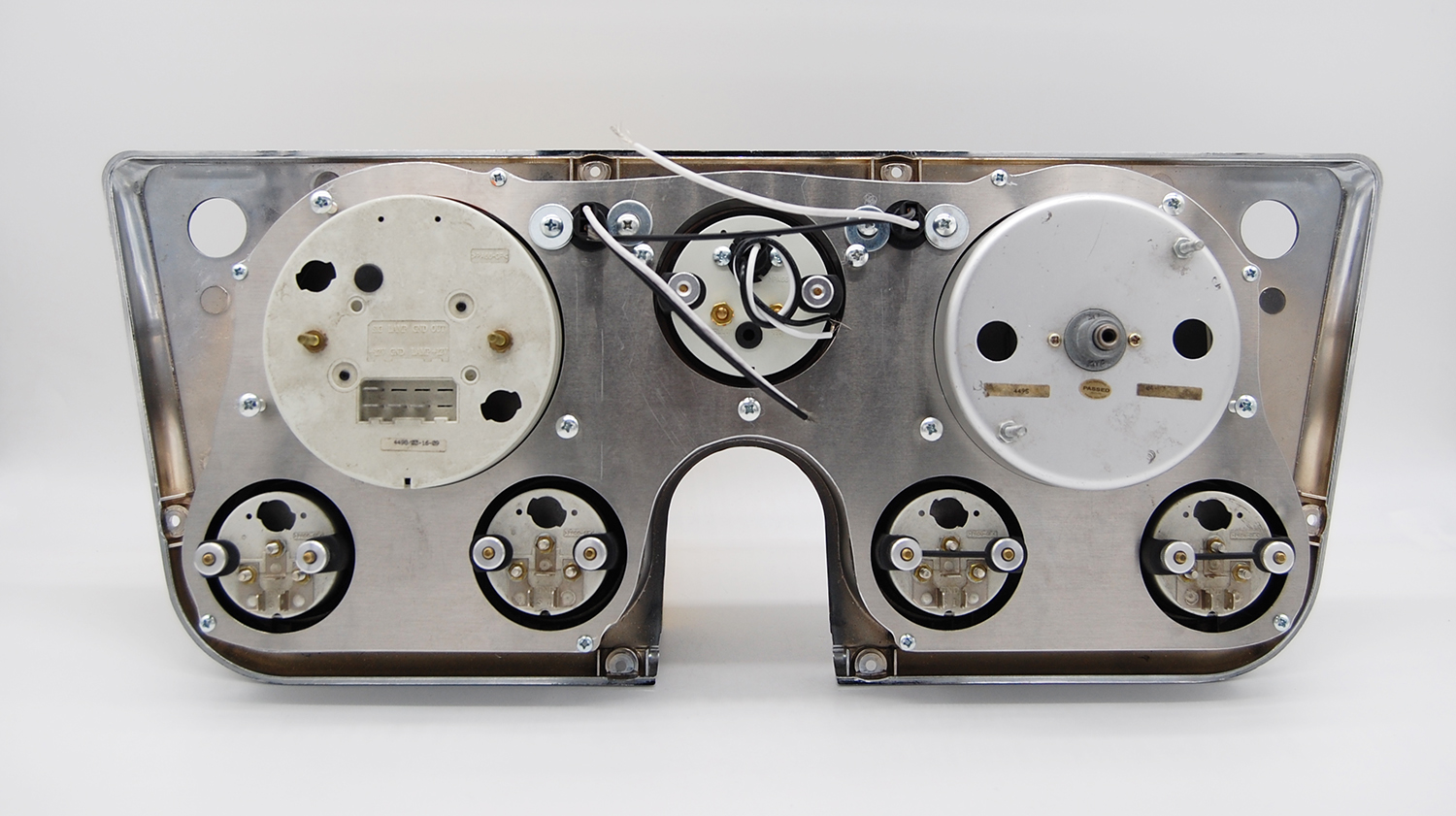

16000_Rear 1967-72 Chevy Truck Adapter Kit for Auto Meter Gauges (rear view)

1967-1972 Chevy Truck Aluminum Adapter Kit w/ Auto Meter Ultra-Lite Gauges - Image 7
ATM4495

ATM4495 (Auto Meter Ultra-Lite 5" Mechanical 160 MPH Speedometer)

1967-1972 Chevy Truck Aluminum Adapter Kit w/ Auto Meter Ultra-Lite Gauges - Image 8
ATM4489

ATM4489 (Auto Meter Ultra-Lite 5" Electric 160 MPH Speedometer)

1967-1972 Chevy Truck Aluminum Adapter Kit w/ Auto Meter Ultra-Lite Gauges - Image 9
ATM4489-M

ATM4489-M (Auto Meter Ultra-Lite 5" Electric 260 KPH Speedometer)

1967-1972 Chevy Truck Aluminum Adapter Kit w/ Auto Meter Ultra-Lite Gauges - Image 10
ATM4481

ATM4481 (Auto Meter Ultra-Lite 5" GPS 160 MPH Speedometer)

1967-1972 Chevy Truck Aluminum Adapter Kit w/ Auto Meter Ultra-Lite Gauges - Image 11
ATM4481-M

ATM4481-M (Auto Meter Ultra-Lite 5" GPS 225 KPH Speedometer)

1967-1972 Chevy Truck Aluminum Adapter Kit w/ Auto Meter Ultra-Lite Gauges

Price range: $1,149.50 through $1,375.00

Includes aluminum adapter kit,  Auto Meter Ultra-Lite gauges, & turn signal indicators.

Adapter kit includes:

  • Two aluminum adapter rings for a 5″ speedometer & a 5″ tachometer
  • One aluminum adapter ring for a 2 5/8″ gauge
  • turn signal pigtail, socket, & bulb, pvc tubing, & acrylic lenses
  • aluminum mounting panels & hardware to mount to bezel (bezel NOT included).

Gauges include:

  • 5” speedometer (choose from drop down menu)
  • 5″ 10,000 RPM tachometer
  • 2 1/16” 100 PSI oil pressure
  • 2 1/16” 100-250 F water temperature
  • 2 1/16” 8-18 VDC voltmeter
  • 2 1/16” fuel level (choose from drop down list)
  • 2 5/8″ clock (alternate gauge options available)
  •  Sending units are included for the oil pressure & water temperature gauges.

    Mounts into stock bezel. Bezel sold separately.

SKU: 16000-UL Category: Tags: ,

Additional information

Weight 12 lbs
Dimensions 23 × 12.5 × 6 in
Adapter Ring Finish

Brushed Finish, Brushed Black Finish
Fuel Options

0-90 ohms (works w/ stock sender), 240-33 ohms (works with ATM3262), 75-10 (Pre 87 Ford), 0-30 ohms (early GM)
Speedometer Options

160 MPH Mechanical, 160 MPH Electric Speedometer, 260 KPH Electric Speedometer, 140 MPH GPS (built in) Speedometer, 225 KPH GPS (built in) Speedometer
